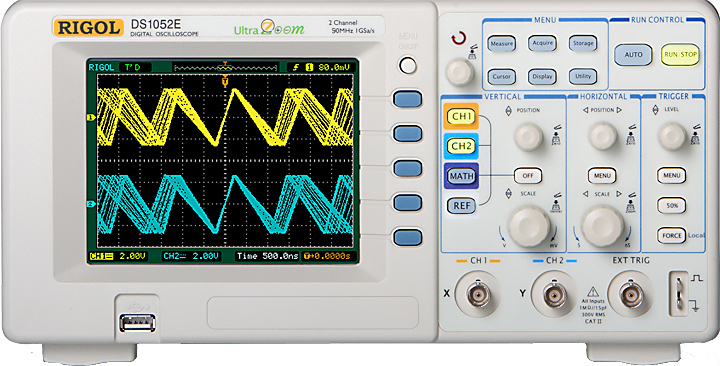

Rigol DS1052E

Benchtop 50MHz 2-Channel Digital Oscilloscope



Item: DS1052E Condition: NEW Manufacturer: Rigol Description:  1 GSa/s maximum Real-time Sample Rate and 1 Mpts of memory depth 50MHz Bandwidth Extensive set of trigger modes including: Edge, Video, Pulse Width, Slope, Alternate 64 k TFT Color LCD, bright and vivid waveform display Direct print to PictBridge compatible printers via USB Device interface Compact design to save your desktop space



Model	DS1102E	DS1052E	DS1102D	DS1052D
Bandwidth	100 MHz	50 MHz	100 MHz	50 MHz
Logic Analyzer	no		yes

2008 Electronic Product Magazine product of the year!

Calibration certificate included.

Rigol oscilloscopes carry a 3-year limited warranty.

This Product includes:

• Power Cord
• Probes (2)
• CD-Rom  (includes User Manual and UltraScope Software

Advanced Performance

• Adjustable Trigger Sensitivity - The ability to filter noise from the signal avoids false triggers.
• Alternate Trigger - Provides a true dual timebase display
• Slope Trigger - Triggers on the signals rise time or fall time is user defined
• Rising and Falling Edge Trigger - Mainly used to view eye-diagrams normally only available in more advanced DSO’s

Easy to use Features

• Waveform Intensity - Adjustable waveform intensity provides a personalized waveform display
• File System -Easy-to-use file system allows for both USB flash drive and local file storage
• Built-in Help System -Press current key for 3 seconds to enter help system

Optional Accessories

• USB-GPIB Adapter
• RS-232 Cable

Performance Characteristics

Model	DS1102E		DS1052E
	DS1102D		DS1052D
Bandwidth	100 MHz		50 MHz
Channels	Dual Channels + External Trigger
Real-time Sample Rate	1 GSa/s (Single Channel), 500 MSa/s (Dual Channels)
Equivalent-time Sample Rate	25GSa/s		10GSa/s
Rise Time	3.5ns		7ns
Memory Depth	Channel Mode	Sample Rate	Normal Memory	Long Memory
	Single Channel	1GSa/s	16 kpts	N.A.
	Single Channel	500MSa/s or lower	16 kpts	1Mpts
	Dual Channels	500MSa/s or lower	8 kpts	512 kpts
Timebase Range	2 ns/div ~50s/div		5 ns/div ~50s/div
Trigger Modes	Edge, Video, Pulse Width, Slope, Alternate
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div ~10V/div
Maximum Input Voltage	All inputs 1MΩ 15pF 300V RMS CAT I
Input Coupling	DC,AC,GND
Roll Range	500ms/div ~50s/div
Cursor Measurements	Manual,Track and Auto Measure modes
Math	+, -­, ×, FFT
Internal Stroge	10 Waveforms and 10 Setups
USB Storage	BMP, CSV, Waveforms and Setups
Connectivity	USB Device, USB Host, RS-232, P/F Out
Display	5.6″ TFT (64 k, Color LCD ), 320×234 resolution
Power Supply	AC:100 ~ 240 VACRMS, 45 ~ 440 Hz, CAT II, 50 VA Max

• • Functions

    UltraScope for DS1000E Series
    UltraScope software allows connections of Rigol DS1000E series oscilloscope to a PC through USB or RS-232 interface under  Windows 98, 2000, NT, and Windows XP

    The UltraScope software provides the following control and analysis features:
    Use Data Browser to display captured waveforms, data and measurements.
    Use DSO Controller to control the oscilloscope locally or remotely .
    Save waveform in “BMP” format.
    Save data into “TXT” or “EXCEL” file format for analysis.
    Print the waveforms.

    			DS1000E Series Digital Oscilloscope DS1000E series are the high-performance, economic digital oscilloscopes. They are widely used in the areas of education, training, production line, research and development.
    Features and Benefits
    2 analog channels, 100MHz bandwidth, 1GSa/s maximum real-time sample rate and 25GSa/s equivalent time sample rate 5.6” TFT QVGA (320X240) with 64K color LCD backlighted display Trigger modes: edge, pulse width, slope, video,  alternate trigger Multiple interface configurations: Standard USB Host and USB device, RS-232 and support U disk storage and PictBridge print standards, optional USB-GPIB adapter
    Advanced functions
    1 Mpts memory depth		Alternate trigger
    File management		Built-in help system
    Low noiseHigh Performance		Keyboard Lock
    Pass/fail test		Waveform record
    Adjustable trigger sensitivity

    •  For detailed performance parameters and technical specifications, refer to DS1000E Series Datasheet



    UltraScope for DS1000E series interface
